Description

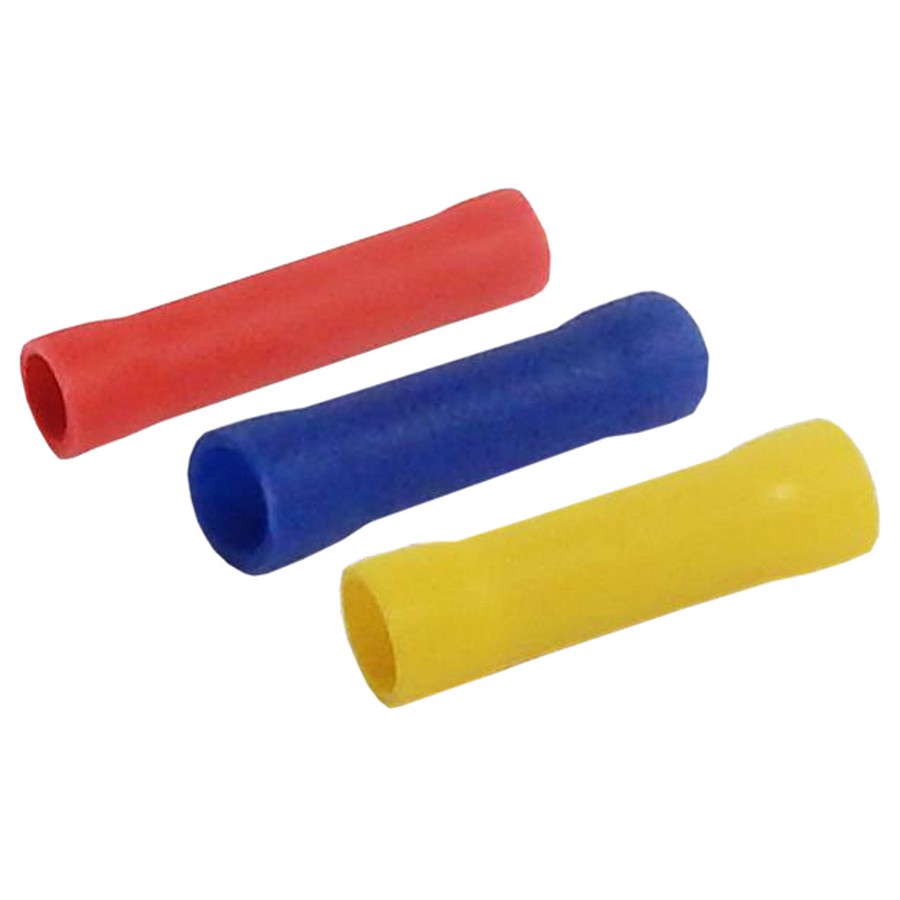

Restock your supplies with these Vinyl Insulated Butt Splices.

  • Butt Splice terminals are Vinyl Insulated
  • Color Coded insulation for easy identification
  • Manufactured from high strength electrolytic Copper Alloy
  • Electro-Tin Plated for corrosion resistance
  • Easy entry expanded insulation eliminates strand “Hang Up”, increasing crimping rates and provides mechanical strain relief
  • Terminal barrel has butted seam
  • 167°F (75°C) 600 Volts Max
  • MAXIMUM ELECTRIC CURRENT: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
  • cULus Listed
  • Packed in Zip Lock plastic bags with punched hole for pegboard hanging

Click on Cat Numbers in Chart Below for Spec Sheets
