Restock your supply of Nylon Insulated Disconnects.

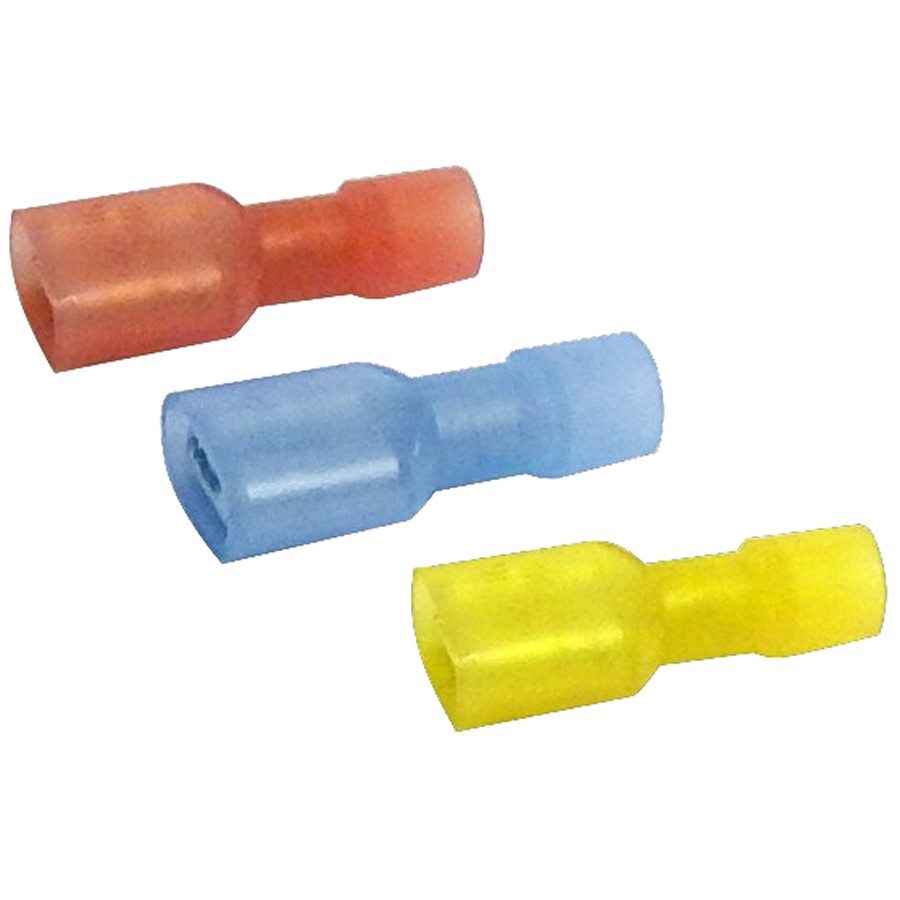

- Male and Female Quick Disconnect Fully Insulated Terminals feature Nylon Insulation
- Color Coded insulation for easy identification
- Manufactured from high strength Brass
- Electro-Tin Plated for corrosion resistance
- Easy entry expanded insulation eliminates strand “Hang Up”, increasing crimping rates and provides mechanical strain relief
- Terminal barrel has butted seam
- Serrated barrel provides excellent electrical contact & resistance to pull-out forces
- 221°F (105°C) 300 Volts Max
- MAXIMUM ELECTRIC CURRENT: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
- cULus Listed
- Packed in Zip Lock plastic bags with punched hole for pegboard hanging
Click on Cat Numbers in Chart Below for Spec Sheets
