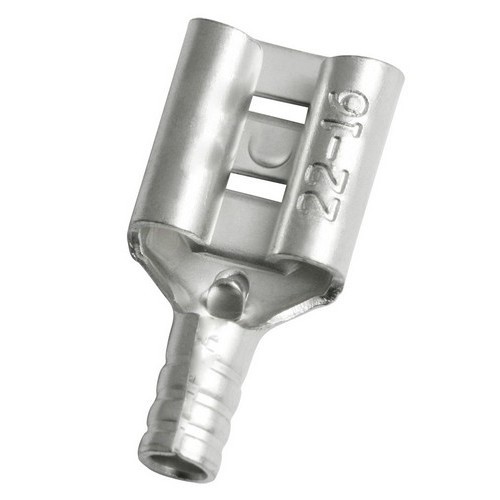

Female Non-Insulated Double Crimp Disconnects for a variety of electrical applications.
- Manufactured from High Strength Brass
- Electro-Tin Plated for corrosion resistance
- Brazed Seam
- Wire range stamped on the surface for easy interpretation
- Extended Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
- Double Crimp: Extended Copper Sleeve for Multiple Crimps
- 302°F (150°C) 600 Volts Max
- Maximum Electric Current: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
- cULus Listed
Click on Cat Numbers in Chart Below for Spec Sheets
