Description

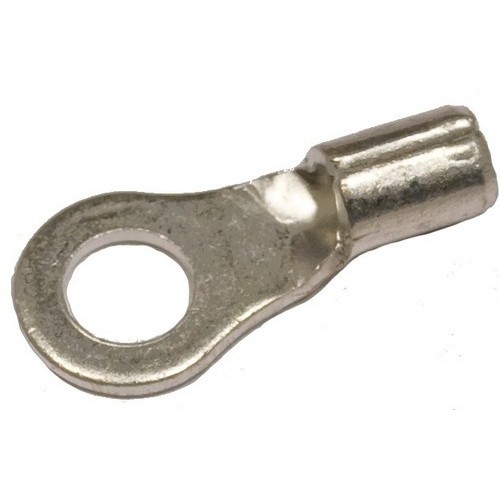

Non-Insulated Wiring Terminals for Electrical Terminations.

  • Non-Insulated Ring Terminal Material: High Strength Electro-Tin Plated Copper
  • Brazed Seam
  • Serrated Barrel with Brazed Seam provides Excellent Electrical Contact & resistance to pull-out forces
  • 302°F(150°C) 600 Volts Max
  • Maximum Electrical Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps, 8 AWG - 70 Amps, 6 AWG - 95 Amps, 4 AWG - 125 Amps, 2 AWG - 170 Amps
  • cULus Listed

Click on Cat Numbers in Chart Below for Spec Sheets
