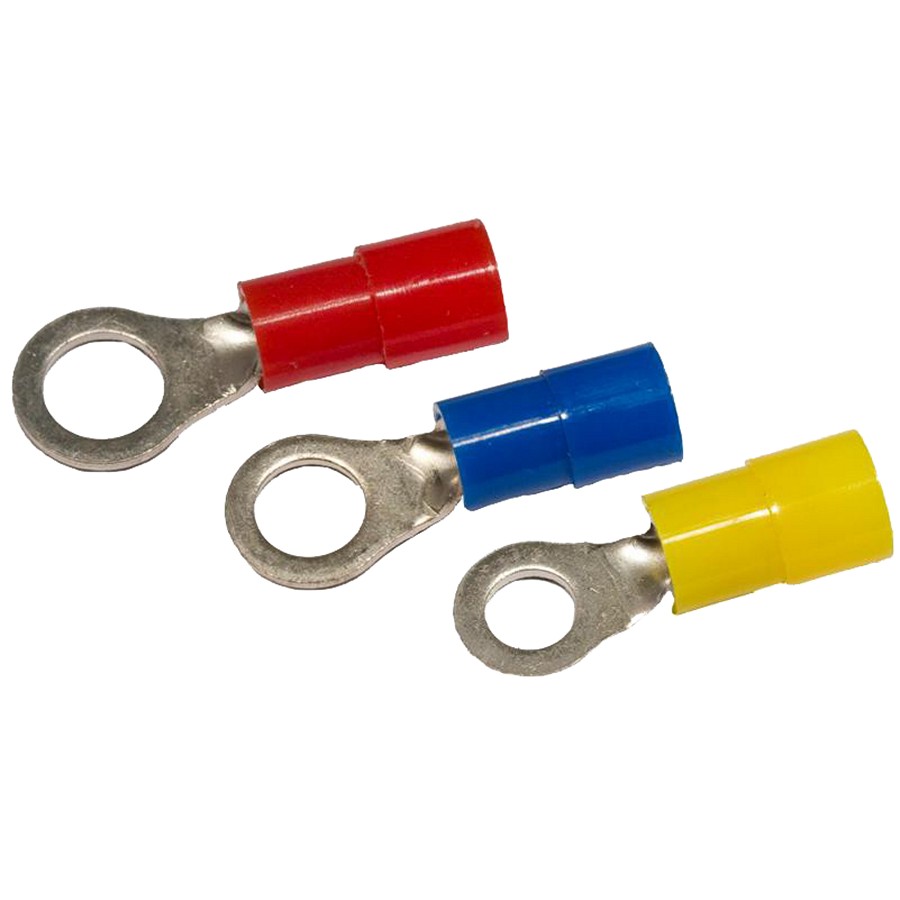

Nylon Insulated Ring Terminals for Electrical Terminations.
- Ring Terminals are Nylon Insulated
- Color Coded insulation for easy identification
- Manufactured from High Strength Electrolytic Copper Alloy
- Electro-Tin Plated for corrosion resistance
- Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
- Wire range stamped on the surface for easy interpretation
- Terminal Barrel has Brazed Seam
- Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
- 221°F (105°C) 600 Volts Max
- Maximum Electric Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
- cULus Listed
Click on Cat Numbers in Chart Below for Spec Sheets
