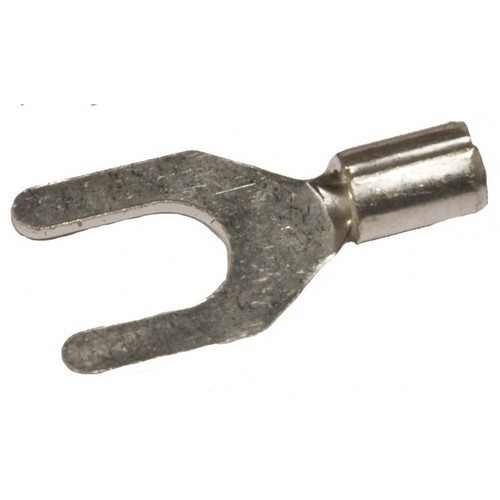

Non-Insulated Fork/Spade Terminals area Convenient Alternative to Ring Terminals.
- Non-Insulated Fork/Spade Terminal Material: High Strength Electrolytic Copper
- Electro-Tin Plated
- Brazed Seam
- Serrated Barrel with Brazed Seam provides excellent electrical contact & resistance to pull-out forces
- 302°F(150°C)
- 600 Volts Max
- Maximum Electric Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps, 8 AWG - 70 Amps, 6 AWG - 95 Amps
- cULus Listed
Click on Cat Numbers in Chart Below for Spec Sheets
