Description

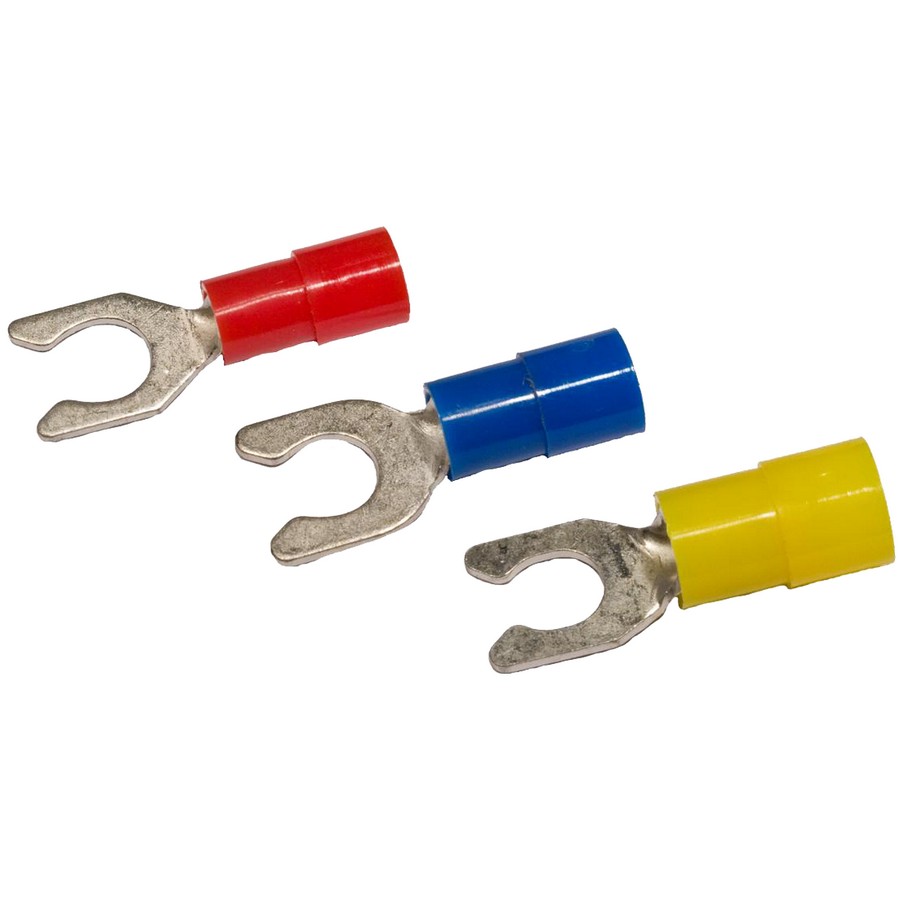

These Locking Fork/Spade Terminals are Nylon Insulated.

  • Locking Fork/Spade Terminals are Nylon Insulated
  • Color Coded Insulation for easy identification
  • Manufactured from High Strength Electrolytic Copper Alloy
  • Electro-Tin Plated for corrosion resistance
  • Easy Entry Expanded Insulation eliminates strand "Hang Up", increasing crimping rates and provides mechanical strain relief
  • Wire range stamped on the surface for easy interpretation
  • Terminal Barrel has Brazed Seam
  • Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
  • Locking Configuration of Tang ensures a Positive Lock to terminal post increasing pull-out force resistance
  • 221°F (105°C) 600 Volts Max
  • Maximum Electric Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
  • cULus Listed

Click on Cat Numbers in Chart Below for Spec Sheets
