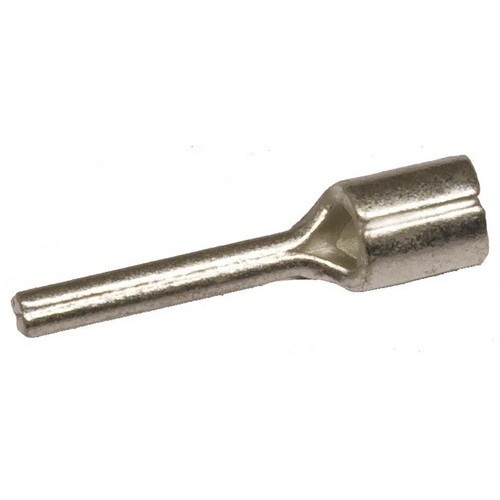

An easy way to restock your Non-Insulated Pin Terminals.
- Non-Insulated Pin Terminal Material: Electro-Tin Plated Electrolytic Copper
- Brazed Seam
- Serrated Barrel provides excellent electrical contact & resistance to pull-out forces
- 302°F(150°C) 600 Volts Max
- Maximum Electric Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
Click on Cat Numbers in Chart Below for Spec Sheets
