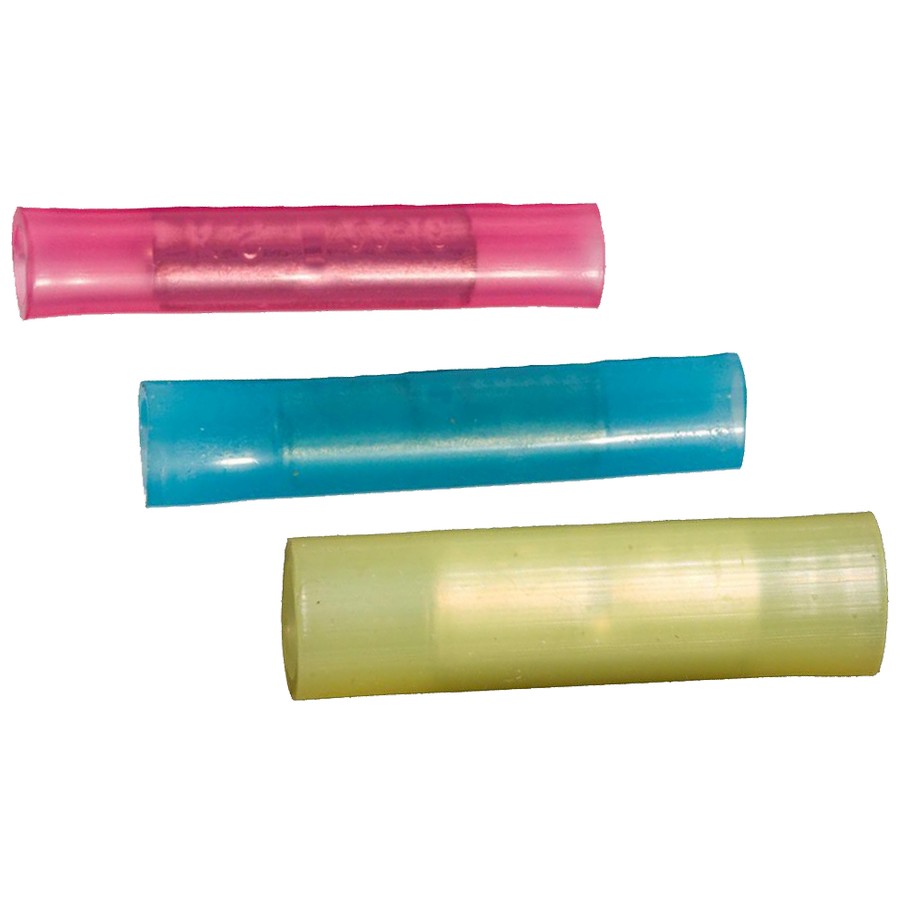

Nylon Insulated Butt Splice Connectors for Electrical Wire Splicing.
- High Strength Electrolytic Tubular Copper
- Electro-Tin Plated for corrosion resistance
- Has Center Wire Stop Barrier
- Color Coded Insulation for easy identification
- Easy Entry Expanded Insulation eliminates strand “Hang Up”, increasing crimping rates and provides mechanical strain relief
- Maximum Electric Current: 26 AWG - 5.5 Amps, 24 AWG - 7 Amps, 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
- 221°F(105°C) 600 Volts Max
- cULus Listed
Click on Cat Numbers in Chart Below for Spec Sheets
