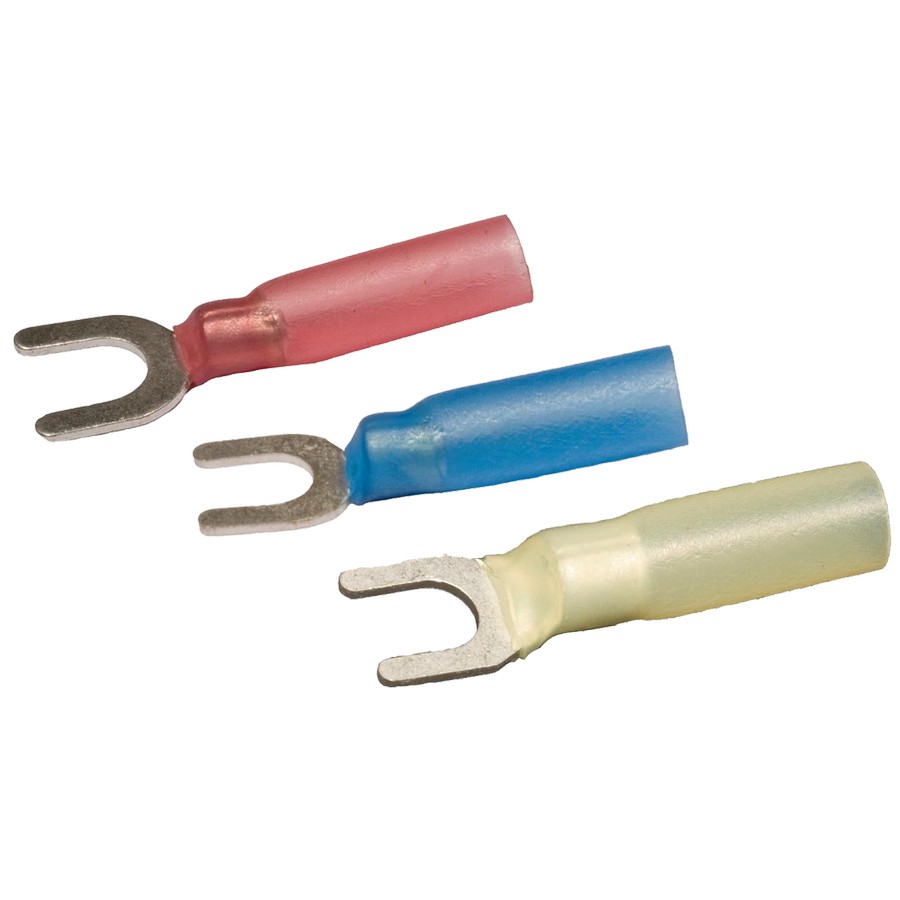

Heat Shrinkable Fork/Spade Terminals for Electrical Work.
- Heat Shrinkable Fork/Spade Terminal Material: Electrolytic Copper
- Electro-Tin Plated for corrosion resistance
- Brazed Seam
- Serrated Barrel provides excellent electrical contact
- Maximum Rating: 600 Volts
- Shrink Temp: 302°F (150°C)
- Resistant Temp: 14°F ~ 221°F (-26°C ~ 105°C)
- Maximum Current: 22 AWG - 9 Amps, 20 AWG - 12 Amps, 18 AWG - 17 Amps, 16 AWG - 18 Amps, 14 AWG - 30 Amps, 12 AWG - 35 Amps, 10 AWG - 50 Amps
- cULus Listed
Click on Cat Numbers in Chart Below for Spec Sheets
