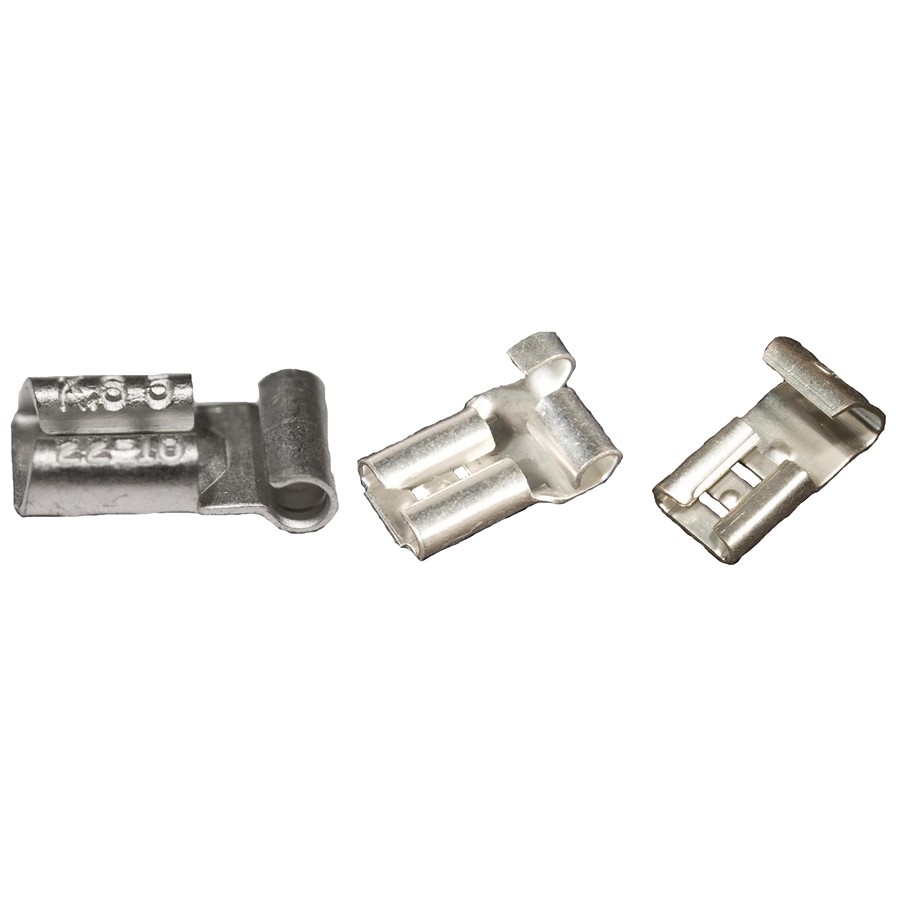

These Female Disconnects are Right Angle and Non-Insulated.
- Manufactured from High Strength Brass
- Electro-Tin Plated for corrosion resistance
- Maximum Electric Current: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
- 302°F(150°C) 600 Volts Max
Click on Cat Numbers in Chart Below for Spec Sheets and Instruction Sheets
