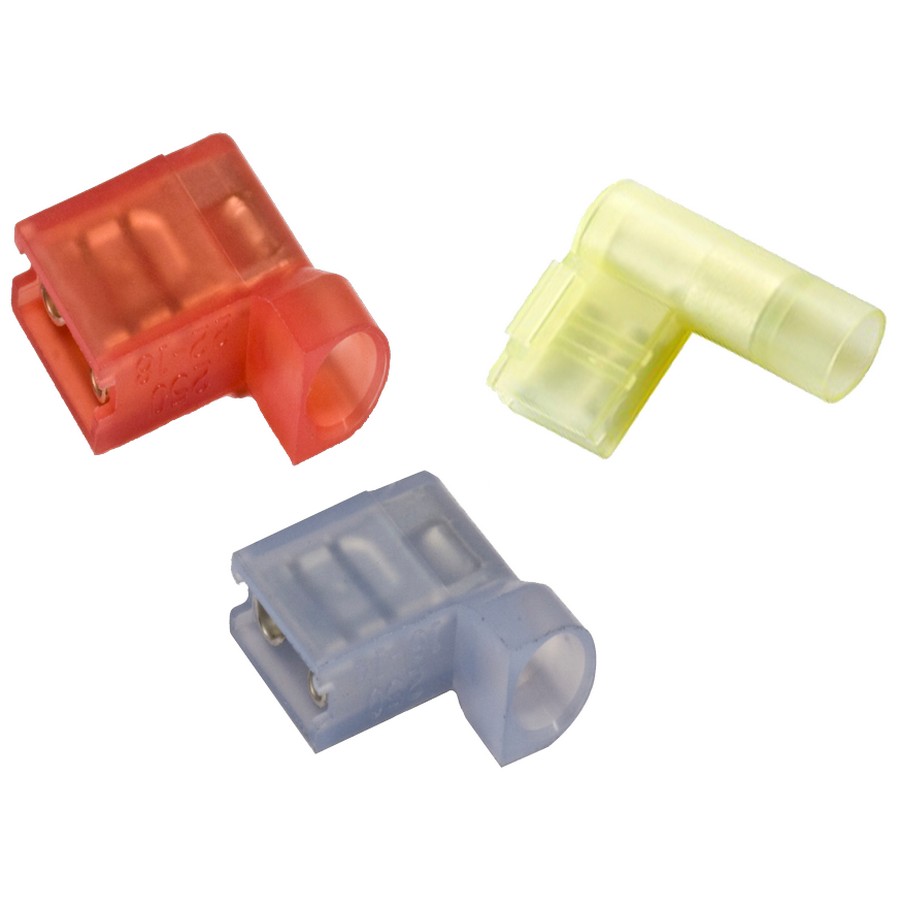

A quick way to restock your Fully-Insulated Right Angle Flag Female Disconnects.
- Manufactured from High Strength Brass
- Electro-Tin Plated for corrosion resistance
- Color Coded insulation for easy identification
- Easy Entry Expanded Nylon Insulation eliminates strand “Hang Up”, increasing crimping rates and provides mechanical strain relief
- Maximum Electric Current: 22 AWG - 3 Amps, 20 AWG - 4 Amps, 18 AWG - 7 Amps, 16 AWG - 10 Amps, 14 AWG - 15 Amps, 12 AWG - 20 Amps, 10 AWG - 24 Amps
- 221°F(105°C) 300 Volts Max
- cULus Listed
Click on Cat Numbers in Chart Below for Spec Sheets
