Description

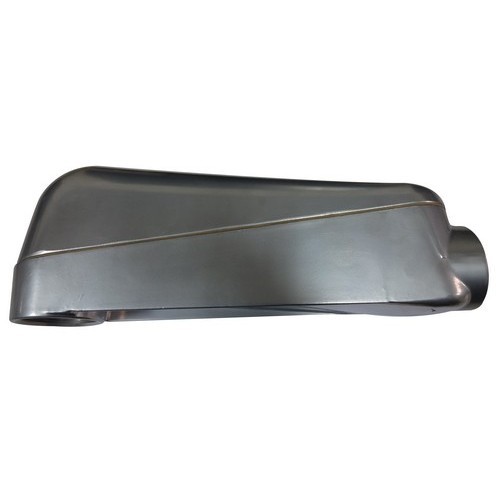

Aluminum Mogul Conduit Bodies with Cover & Gasket for Rigid or IMC Conduit.

  • Larger Body Size to Facilitate Pulling of Large and Heavy Conductors
  • Specially Designed Raised Cast Aluminum Covers Provide Additional Wiring Capacity
  • Moguls are Used for Pulling Straight, 45° and 90° Angle Turns or Making Splices/Taps
  • Smooth Rounded Integral Bushing Protects Cable Insulation
  • Accurately Tapped Tapered Threads for Tight Rigid Conduit Joints and Ground Continuity
  • Captive Stainless Steel Screws In Cover to Speed Installation and Prevent "Freezing" of Screws
  • Includes Celluse/Rubber Flex Sealing Gasket
  • Die-Cast from High Strength Corrosion and Weather Resistant Copper Free Aluminum Alloy
  • Length Requirement: Distance Between Centerline of Each Hub Bushing (Conduit Stop) Exceeds 6 Times the Trade Diameter of the Conduit
  • cULus Listed

Click on Cat Numbers in Chart Below for Spec Sheets
