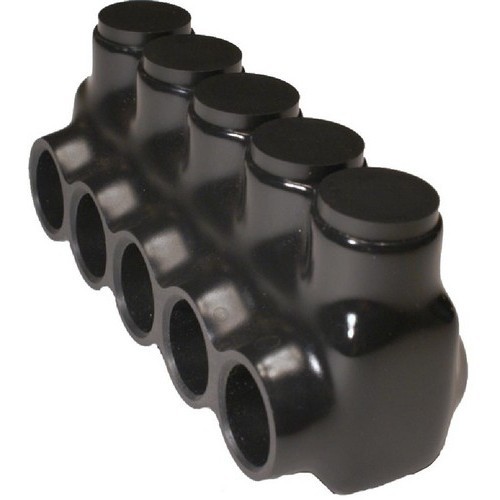

Single Side Entry Cable Connector simplifies cable splicing and tapping applications.
- Wires Enter the Same Side of the Connector
- Insulated with rugged high-dielectric Rubber/Vinyl Coating
- Pre-Filled with Oxide Inhibitor
- Single Side Entry Cable Connector is 6061-T6 Aluminum CU9AL Dual Rated for use with Copper and/or Aluminum wires
- Easy Re-Entry for Changes, Inspection or Troubleshooting
- Plugs Marked with Connector Max Wire Size for easy identification
- One wire per terminal
- Temperature Range of –49°F to 194°F (–45° to 90°C)
- ANSI C119.4 & cULus 486b Listed thru 750MCM
- Rated for use with 194°F(90°C Cables)
- 600 Volt
- Indoor Use Only
- Dimension Measurements = Inches
Click on Cat Numbers in Chart Below for Spec Sheets
