Description

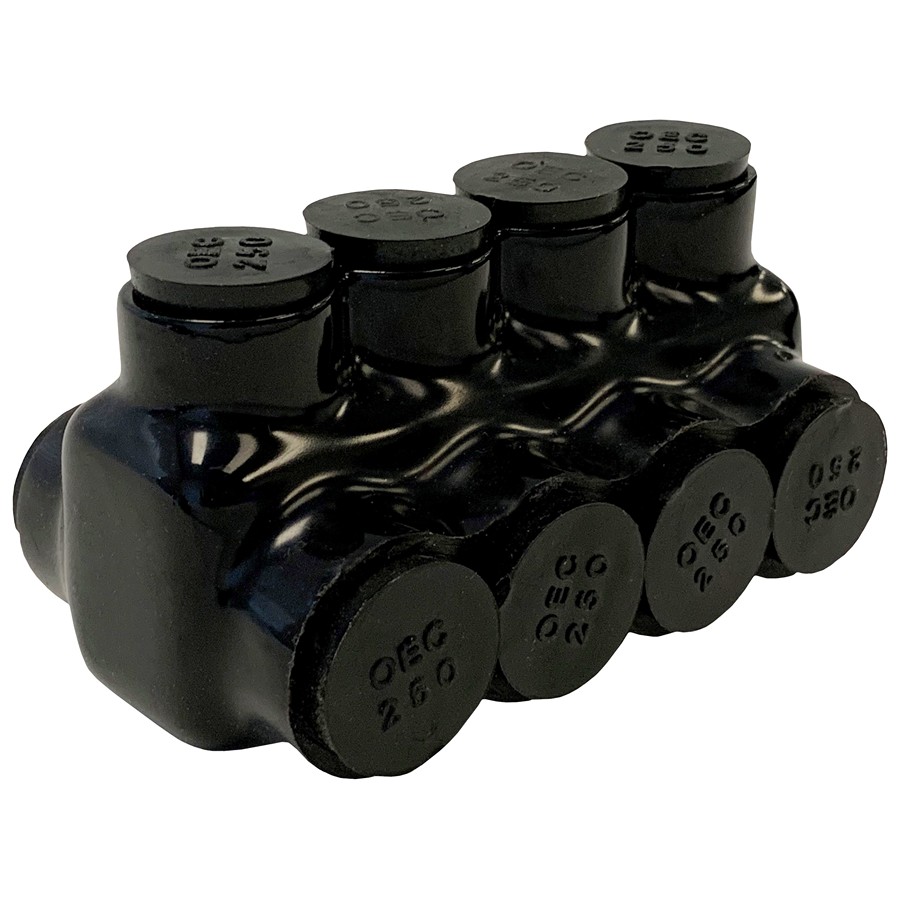

Our Dual Entry Cable Connector makes electric Splicing & Tapping Simple Fast & Easy

  • Wire Entry from Either Side of connector
  • Insulated with rugged high-dielectric Rubber/Vinyl Coating
  • Pre-Filled with Oxide Inhibitor
  • Easy Re-entry for Changes, Inspection or Troubleshooting
  • Plugs Marked with Connector Max Wire Size for easy identification
  • Dual Entry Cable Connector is CU9AL Dual Rated 6061-T6 Aluminum for use with Copper and/or Aluminum wires
  • One Wire per Terminal
  • Temperature Range of –49°F to 194°F (–45° to 90°C)
  • ANSI C119.4 & cULus 486b Listed thru 750MCM
  • Rated 194°F(90°C) 600 Volt
  • Indoor Use Only
  • Dimension Measurements = Inches

Click on Cat Numbers in Chart Below for Spec Sheets
