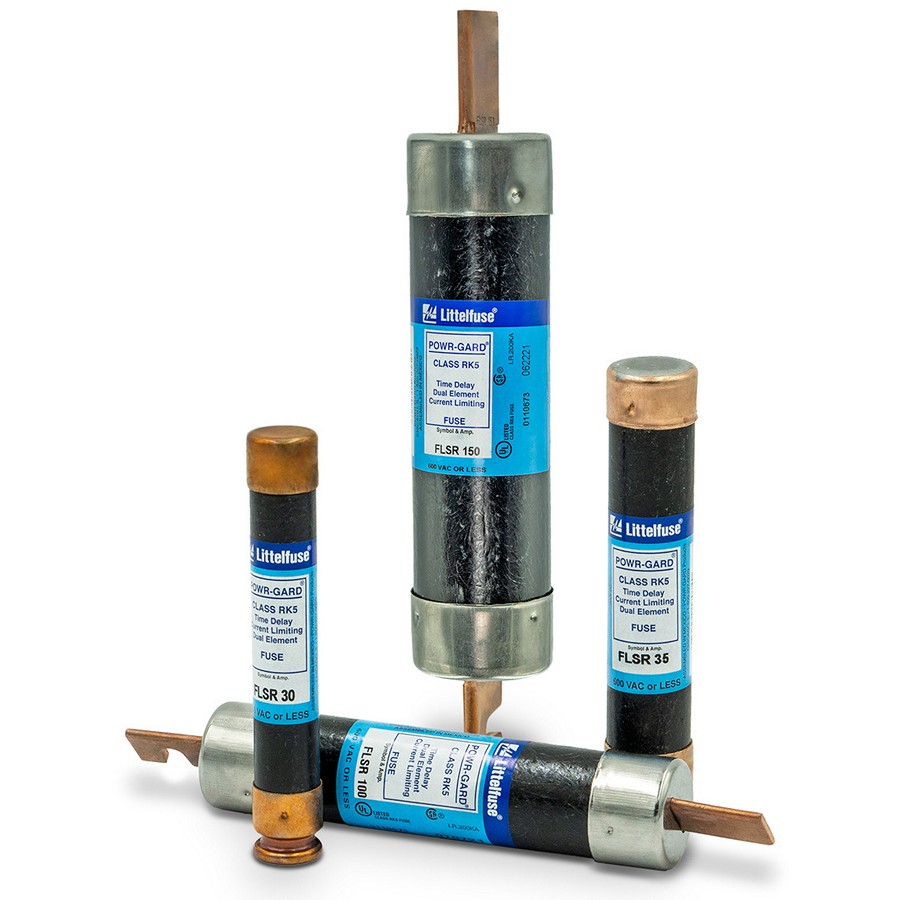

RK5 Time Delay Fuses provide a time delay feature.
- Provides motor overload, ground fault and short-circuit protection
- Class RK5; 600 VAC
- Dual-Element, Time-Delay – 10 seconds (minimum) at 500% rated current (8 seconds for fuses 30A or less)
- Interrupting Rating 200,000 Amps. RMS.Sym.
- UL Listed, Std. 248-12
- Class RK-5, Guide JDDZ
- Certified, C22.2 No. 248.12, Class 1422-02
Click on Cat Numbers in Chart Below for Spec Sheets
